Fuel filter located on a 2009 Expedition and can it be serviced?

؟ Where is the fuel filter located on a 2009 Expedition and can it be serviced

Category: Ford
Expert:  lostrider replied 4 years ago.

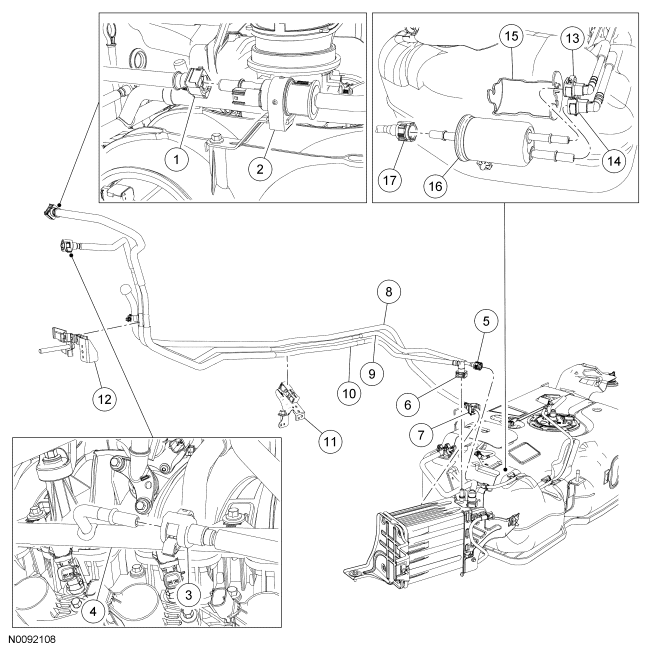

Hi Customer this is lostrider, it depends on the trucks build date, up to 9/15/08 the fuel filter is located on the side of the fuel tank and it is serviceable, here is a diagram of the location, after 9/15/08 the filter is part of the fuel pump and is not serviceable. hope this helps.
graphic
ItemPart NumberDescription
1-Evaporative Emission (EVAP) canister-to-EVAP purge valve quick release coupling (part of 9D676)
29G641EVAP purge valve
3-Fuel supply tube-to-fuel rail quick connect coupling (part of 9J280)
49F792Fuel rail
5-Fuel tank fuel supply tube-to-fuel supply tube quick connect coupling, 106L (28 gal) fuel tank (part of 9J280)
6-EVAP purge valve-to-EVAP canister quick connect coupling (part of 9D676)
7-Fresh air tube-to-EVAP canister quick connect coupling (part of 2S284)
82S284Fresh air tube
99J280Fuel supply tube
109D676Fuel vapor tube
119D319Fuel supply tube, vapor tube and fresh air tube bracket-to-transmission housing
129D319Fuel supply tube, vapor tube and fresh air tube bracket-to-transmission bellhousing
13-Fuel return tube-to-fuel filter inlet tube quick connect coupling, 127L (33.5 gal) fuel tank (part of 9J280)
14-Fuel supply tube-to-fuel filter inlet tube quick connect coupling, 127L (33.5 gal) fuel tank (part of 9J337)
159A335Fuel filter support bracket, 127L (33.5 gal) fuel tank
169155Fuel filter, 127L (33.5 gal) fuel tank
17-Fuel filter outlet tube-to-fuel tube spring lock coupling, 127L (33.5 gal) fuel tank (part of 9J280)
